Alco manufacture a range of flat and circular copper braids. Tinned copper braid is the most popular followed by plain copper braid (natural). Our quality produced braids are usually used for continuous current conductors or earth straps.

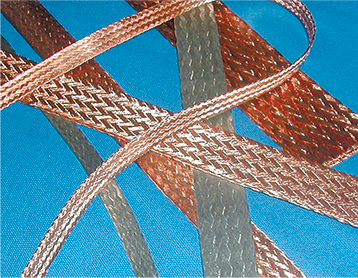

Flat Tinned Copper Braid
Part No.
Normal Area mm²
Dimension mm
Current Rating Amps
FTCB 0-5
0-5
2 x 0.5
10
FTCB 1-7
1.7
4 x 0.75
30
FTCB 4-2
4.25
8 x 1
52
FTCB 7-5
7.5
10 x 1.5
63
FTCB 10
10
14 x 1.5
90
FTCB 16
16
19 x 2
120
FTCB 25
25
25 x 3
150
FTCB 35
35
25 x 3.5
200
FTCB 50
50
30 x 4.5
250
FTCB 70
70
32 x 6
300
FTCB 95
90
37 x 6
350
The braided copper wire listed are flat tinned copper braids. However Alco hold many plain flat copper braids in stock and can manufacture any size and construction of flexible copper braid. Specialist materials are available including stainless steel braid, aluminium braid and nickel plated coper braid. Alco offer can alco offer PVC covered flat copper braid to customer specification.

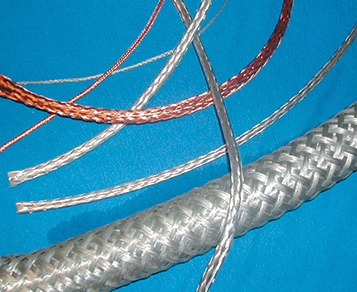

Circular (Round) Braid
Part No.
Normal Area mm²
Dimension mm
Current Rating Amps
CTCB 0-5
0-5
1.3
12
CTCB 1-7
1.7
1.8
25
CTCB 2-3
2.3
2.4
30
CTCB 4
4
3.5
45
CTCB 7-8
7
4.3
63
CTCB 10
10
5.5
80
CTCB 16
16
6.8
110
CTCB 25
25
8.5
140
CTCB 35
35
10.5
180
CTCB 50
50
11.5
230
CTCB 70
70
14.5
280
CTCB 95
95
16
330
The braided copper wire above are stock tinned circular copper braids. Alco hold many plain(natural) circular braids in stock and can manufacture any size and construction of braid.Earth bonding, earth strap, earth braid and earth lead are all typical examples of uses for round copper braid. Alco can supply all of your copper tube terminals or lugs that you may require to make up your flexible copper braided connectors.
Stocking Braid
Part No.
Normal Area mm²
Wire Diameter mm
Usable Diameter min max
STB 6
6
0.20
6
40
STB 10
10
0.20
10
40
STB 16
16
0.30
15
60
STB 25
25
0.30
20
120
STB 35
35
0.30
25
120
STB 50
50
0.30
30
120
STB 95
95
0.20
30
120
STB 150
150
0.20
35
120
Stocking braids are designed for use with high voltage jointing systems, such as earth continuity for MV and HV joints. Supplied flat, it expands to form a circle capable of maximum push-back which will return to its original format. Above is a sample of sizes but can be manufactured to any size and choice of materials including tin plated copper, plain copper, galvanised steel and alternative non-ferrous metals.
Screening Braid
Part No.
Former O/D
Minimum Optical Coverage
Usable Diameter min max
SCB 6
6
90%
5
8
SCB 10
10
90%
7
12
SCB 12.5
12.5
90%
11
14
SCB 15
15
90%
13
18
SCB 20
20
90%
17
23
SCB 25
25
90%
22
28
SCB 30
30
90%
27
40
Screening braid provide exceptional protection for wire and cable harnesses from electromagnetic interference (EMI). Available in tin plated and nickel plated copper, it provides optical coverage of between 96% and 99%. It is supplied on a former to maintain its round form and to aid its application. Recommended for wire systems demanding higher levels of protection from EMI.

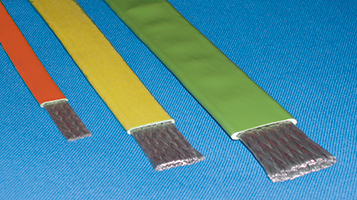

PVC Sleeved Braid
PVC sleeved braid is recommended for outdoor use and in the cable jointing industry. PVC is extruded on to either flat or circular braid in any colour including clear. When braids are covered, current ratings should be reduced by approximately 10%.
